Favorable SPX6 Automatic Spreader Machine – Fully automatic Applied for all fabric
Recommendation points:
1. Fully automatic-one worker can operate! Servo motor control, positioning accuracy up to micron level;
2. Microcomputer automatically calculate, photoelectric sensor feeding cloth, saving time, improve production efficiency;
3. Spread all fabric- knitting/woven, thick/thin, smooth/soft, stretch/curled! Humanized design with device spread fabric easy to have curled edge;
4. PLC control system strengthen photoelectric sensor, sensitivity adjustable, which makes one worker can operate the whole machine;

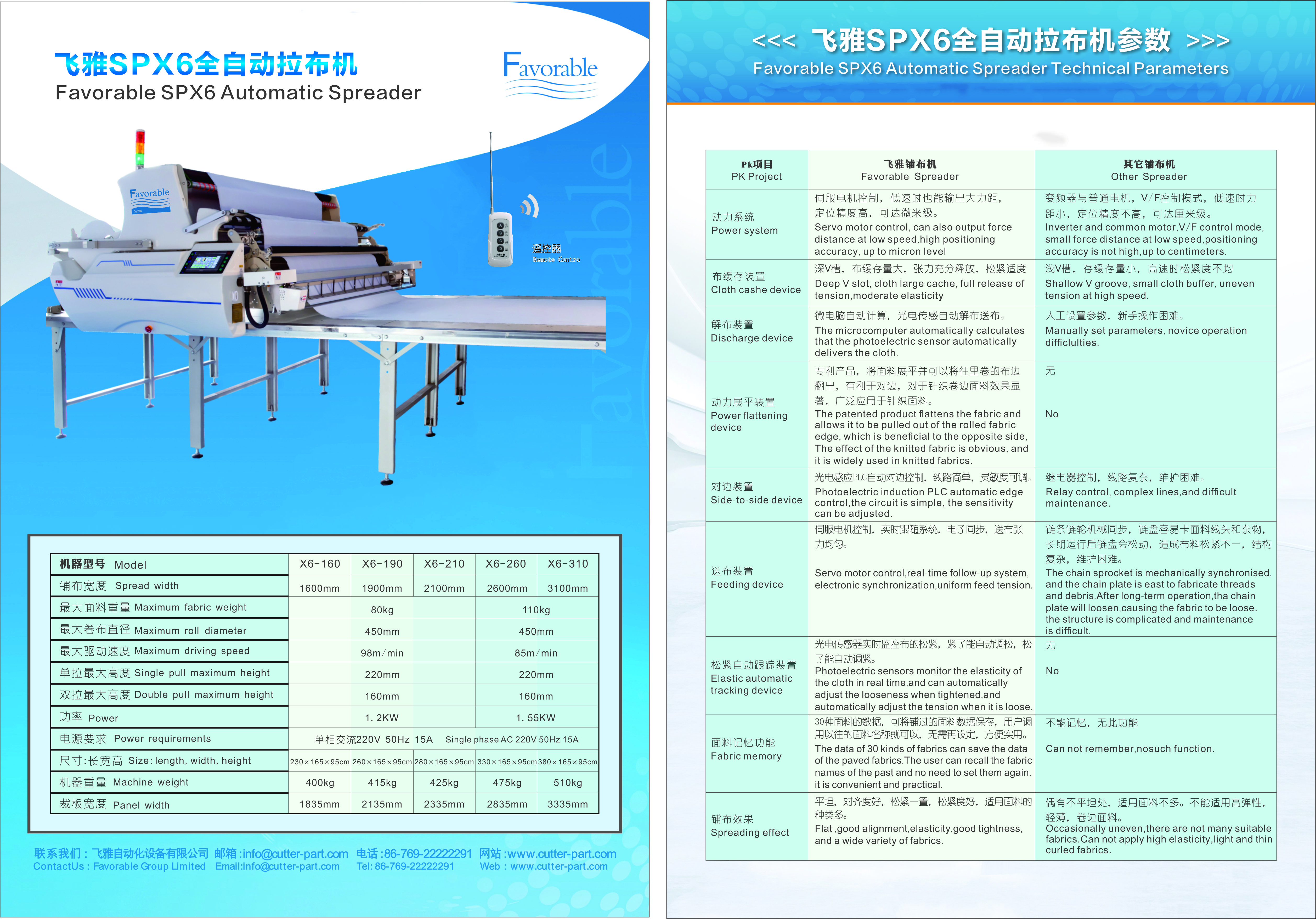

Main Paramenters:
| Model | SPX6-160 | SPX6-190 | SPX6-210 | SPX6-260 | SPX6-310 |
| Spread Width | 1600mm | 1900mm | 2100mm | 2600mm | 3100mm |
| Maximum fabric weight | 80kg | 110kg | |||
| Maximum roll diameter | 450mm | 450mm | |||
| Maximum driving speed | 98m/min | 85m/min | |||
| Single pull maximum height | 220mm | 220mm | |||
| Double pull maximum height | 160mm | 160mm | |||
| Power | 1.2KW | 1.55KW | |||
| Power requirement | Single phase AC 220V 50Hz 15A | ||||
| Size: length, width, height | 230x165x95cm | 260x165x95cm | 280x165x95cm | 330x165x95cm | 380x165x95cm |
| Machine weight | 400kg | 415kg | 425kg | 475kg | 510kg |
| Panel width | 1835mm | 2135mm | 2335mm | 2835mm | 3335mm |
Post time: Jul-12-2025
